Business Flows

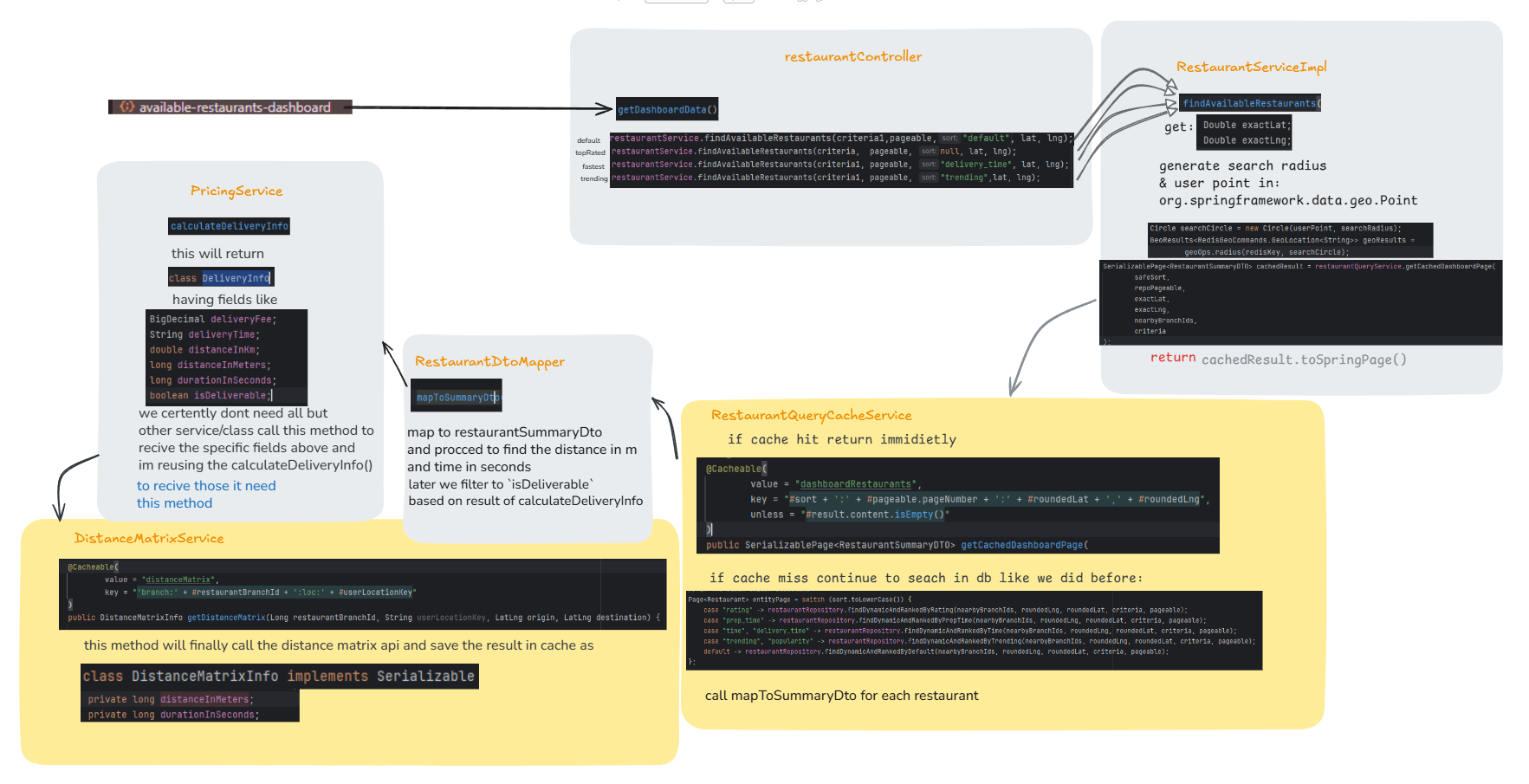

Customer Discovery Flow

Endpoint:

GET /api/restaurants/available-restaurants
GET /api/restaurants/available-restaurants-dashboard

Flow:

1. The backend resolves user coordinates from request lat/lng or from the authenticated user's active delivery location.
2. Redis GEO key restaurant:locations finds nearby branch IDs within the system max radius of 8 km.
3. If no nearby branches exist, the endpoint returns an empty page quickly.
4. RestaurantQueryCacheService queries restaurants using dynamic sorting.
5. Branches are filtered to active, open, manager-assigned branches inside the Redis candidate set.
6. RestaurantDtoMapper calls PricingService to calculate delivery info.
7. Only deliverable branches are included.
8. If a restaurant has more than one deliverable branch, the best branch is selected based on sort.

Dashboard endpoint behavior:

• Always fetches normal.
• Only fetches topRated, fastest, and trending when the initial normal response contains at least 10 branch entries.

Sort values:

default
rating
prep_time
time
delivery_time
trending
popularity

Delivery Pricing and Time Flow

Source:

PricingService
DistanceRoutingManager
GoogleDistanceMatrixService
OpenRouteDistanceMatrixService

Inputs:

• branch coordinates,
• user coordinates,
• branch average preparation time,
• branch delivery radius,
• routing provider.

Deliverability requires:

• branch is not closed,
• a valid route exists,
• road distance is within branch.deliveryRadiusInKm.

Delivery price tiers:

Road distance	Delivery price
<= 1.5 km	80
<= 3.0 km	150
<= 5.0 km	200
> 5.0 km	300

Delivery time:

avg prep time + route travel time + 5-10 minute courier buffer

The result is rounded to the nearest 5 minutes and formatted like:

25-30 min

Menu Management Flow

The backend separates restaurant-level menu definition from branch-level selling configuration.

Manager creates:

• master menu item (Menu),
• menu category (Category),
• option groups (OptionGroup),
• option variants (OptionVariant).

Branch manager controls:

• branch-specific menu item price,
• branch-specific availability,
• branch-specific highlighted flag,
• branch-specific option variant overrides through BranchOptionConfig.

This means the same master item can be sold differently by each branch.

Example:

Restaurant: Tony Pizza
Master menu: Pepperoni Pizza
Branch A: price 900, available true
Branch B: price 980, available false

Option example:

Option group: Choose sauce
minSelection: 0
maxSelection: 2
Variant: Garlic sauce, recommendedPrice: 50
Branch override: Blloku branch, Garlic sauce, priceOverride: 80, isAvailable: true

Cart Flow

Endpoint group:

/api/cart

Add-to-cart steps:

1. Validate option selections against minSelection and maxSelection.
2. Load the BranchMenuItem.
3. Reject unavailable branch menu item.
4. Get or create the customer's cart for that branch.
5. Load effective prices for selected variants, including branch overrides.
6. Calculate final pricePerUnit.
7. If an identical cart line already exists with the same branch menu item and same selected variants, increment its quantity.
8. Otherwise create a new cart item and variant joins.
9. Return a rebuilt cart view.

Important rule:

Customers add branchMenuItemId, not menuId.

That is required because real price and availability live on BranchMenuItem.

Checkout Preview Flow

Endpoint group:

/api/checkout

Checkout preview:

1. Load current user.
2. Load branch cart.
3. Resolve selected payment method:
   • cart selected method if present,
   • otherwise user's last selected payment method,
   • otherwise branch-supported fallback.
4. Build order quote:
   • subtotal,
   • service fee,
   • tip,
   • delivery fee,
   • total,
   • delivery time/distance.
5. Validate delivery zone.
6. Validate branch is open.
7. Validate minimum order amount.
8. Return checkout DTO.

Service fee rule:

5% of subtotal, capped at 150

Additional zone rule:

checkout blocks if actual route exceeds branch radius after applying current tolerance logic

Place Order Flow

Endpoint:

POST /api/orders/checkout/{branchId}

Flow:

1. Load current customer.
2. Load active customer delivery location.
3. Load cart for branch.
4. Check for existing pending PokPay order for same customer and branch.
5. If existing order has same cartHash and latest payment link is still valid, return the same payment URL.
6. If same cart but payment expired, mark old payment expired and generate a new PokPay link.
7. If cart changed, mark old order FAILED and payment ABANDONED, then continue.
8. Validate item and variant availability.
9. Build order quote using checkout service.
10. Create order, order items, variant snapshots, delivery address snapshot, totals, driver earnings, and cartHash.
11. If payment method is POK, create PokPay SDK order and return payment URL.
12. If payment method is not POK, clear cart, publish order event, increment daily branch order count, return order.

Driver earnings rule:

if deliveryPrice <= 80: driver receives deliveryPrice
else: driver receives 50% of deliveryPrice
driver also receives the full tip

PokPay Payment Flow

Payment creation:

1. Backend logs in to PokPay using keyId and keySecret.
2. Backend creates SDK order under merchantId.
3. Backend stores:
   • transaction ID,
   • payment URL,
   • created date,
   • expiry,
   • amount,
   • gateway POK,
   • payment status PENDING_PAYMENT.
4. Client redirects user to PokPay confirmation URL.

Webhook:

POST /api/v1/payments/webhook

Webhook processing:

1. Find order by payment transaction ID.
2. If order already has COMPLETED payment status, return immediately. This makes the webhook idempotent.
3. If order was marked FAILED by cleanup but payment arrives late, set order status back to INITIALIZED.
4. Set order and payment status to COMPLETED.
5. Clear customer cart for the branch.
6. Increment branch daily order count.
7. Publish OrderSavedEvent for WebSocket dashboards.

Payment cleanup:

POST /api/internal/jobs/payment-cleanup

This marks expired payments and abandoned orders through repository update queries.

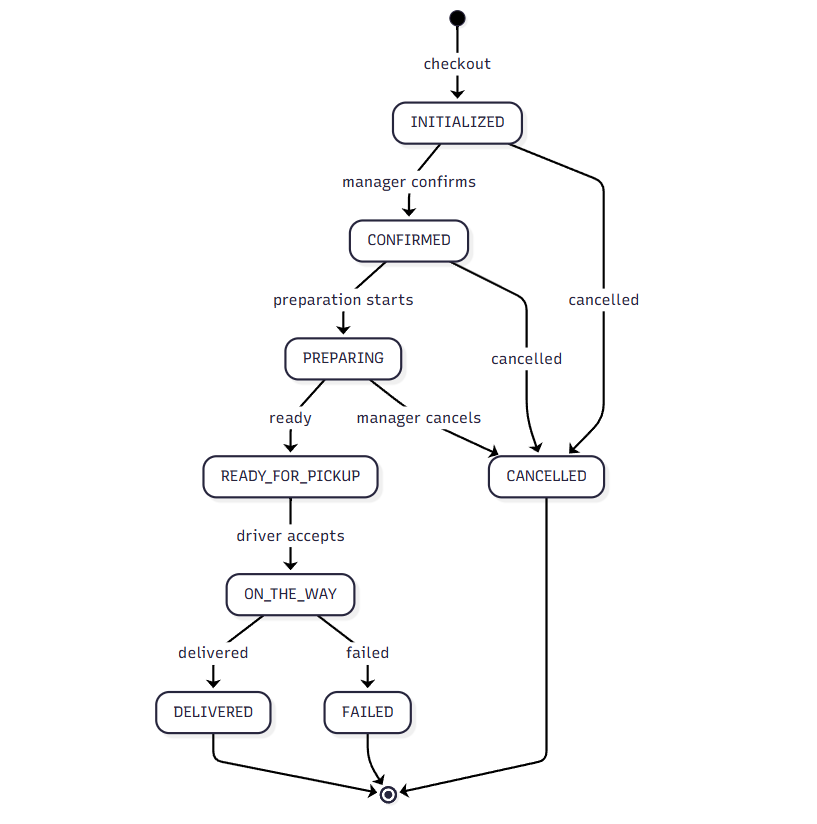

Order Status Flow

Current order statuses:

INITIALIZED
CONFIRMED
PREPARING
READY_FOR_PICKUP
ON_THE_WAY
DELIVERED
CANCELLED
FAILED

The controller accepts a partial OrderDTO with either orderStatus or paymentStatus. It rejects requests that send both or neither.

Delivery Driver Transitions

Delivery users can set:

ON_THE_WAY
DELIVERED
FAILED

Valid transitions:

From	To
READY_FOR_PICKUP	ON_THE_WAY
ON_THE_WAY	DELIVERED
ON_THE_WAY	FAILED

If the order is unassigned and a delivery user updates it, the processor can assign the current driver. If already assigned to another driver, it rejects the update.

Delivery users can update payment status only for non-POK payments, and only to:

COMPLETED
FAILED

Customer Transitions

Customers can only request:

CANCELLED

The order must belong to that customer. Customers cannot change payment status.

If cancellation happens while payment is incomplete, the backend sets payment status to:

CANCELED

and updates incomplete payment rows too.

Branch Manager and Manager Updates

Branch manager:

• must manage the order's branch.

Manager:

• must own the order's restaurant.

The current validator enforces ownership but does not restrict branch manager/manager target statuses as tightly as delivery transitions. If stricter production state-machine rules are needed, extend OrderStatusValidator.

Delivery Assignment Flow

Endpoint:

GET /api/orders/unassigned-orders
PUT /api/orders/assign-order-delivery/{orderId}

Unassigned pool includes orders where:

• deliveryPerson is null,
• status is one of:

CONFIRMED
PREPARING
READY_FOR_PICKUP

When a driver accepts:

1. Backend verifies role DELIVERY.
2. Backend rejects if order is already assigned.
3. Backend sets deliveryPerson to current driver.
4. Backend saves order.

The WebSocket event system removes the order from other drivers' global pool when an order transitions out of unassigned criteria.

WebSocket Order Update Flow

Source event:

OrderSavedEvent

Published when:

• order status changes,
• non-POK order is placed,
• PokPay webhook confirms payment.

Handler:

WebSocketController.handleOrderSaveEvent

Broadcasts:

1. Branch dashboard:

/topic/branch.{branchId}.manager

2. Delivery global unassigned pool:

/topic/delivery.global.unassigned

with wsAction:

ADD
REMOVE

3. Personal driver queue:

/user/queue/updates

Live Driver Location Flow

Endpoint:

POST /api/delivery-location/location

Payload:

{
  "latitude": 41.3275,
  "longitude": 19.8189
}

Flow:

1. Kotlin delivery app authenticates as delivery user.
2. App sends current coordinates.
3. Backend gets current user ID.
4. Backend writes payload to Redis:

driver_loc:{driverId}

5. TTL is one hour.

Current limitation:

• There is no completed endpoint that reads these Redis keys for customer/admin frontend display.
• LocationSubscriber exists for Redis pub/sub topic driver_locations, but the write endpoint currently uses Redis SET, not PUBLISH.
• LocationSubscriber currently attempts messagingTemplate.convertAndSend(location) without a destination, so it needs completion before use.

Recommended next design:

1. Keep driver_loc:{driverId} as latest-position cache.
2. Add GET /api/delivery-location/driver/{driverId} for authorized admin/customer/order tracking.
3. Publish to /topic/orders.{orderId}.driver-location or /user/queue/driver-location when a driver with active order updates location.
4. Include authorization checks so customers can only see the driver for their active order.

Refund Flow

Customer refund request:

POST /api/payment/ask-for-refund/{orderId}

Rules:

• Cash on delivery cannot request refund.
• Order must be CANCELLED.
• Order must belong to customer.
• Order payment and completed payment row become TO_REFUND.

Branch manager refund:

POST /api/payment/{paymentId}/refund
POST /api/payment/refund/{paymentId}

Rules:

• Role-scoped to branch/restaurant ownership.
• Delivery drivers are forbidden.
• Calls PokPay refund API.
• Marks payment and order payment status REFUNDED.

There are currently two branch-manager refund endpoints. Keep one canonical endpoint later.

Analytics Flow

Analytics endpoints build a role-scoped filter:

• Admin can request target branch or target restaurant.
• Manager is forced to their restaurant.
• Branch manager is forced to their branch.
• Delivery is denied restaurant analytics but can access delivery-specific counts and earnings.

Metrics include:

• branch revenue,
• total revenue,
• successful orders,
• unique customers,
• popular items,
• monthly revenue,
• daily revenue,
• assigned preparation order count for delivery,
• delivery earnings.
