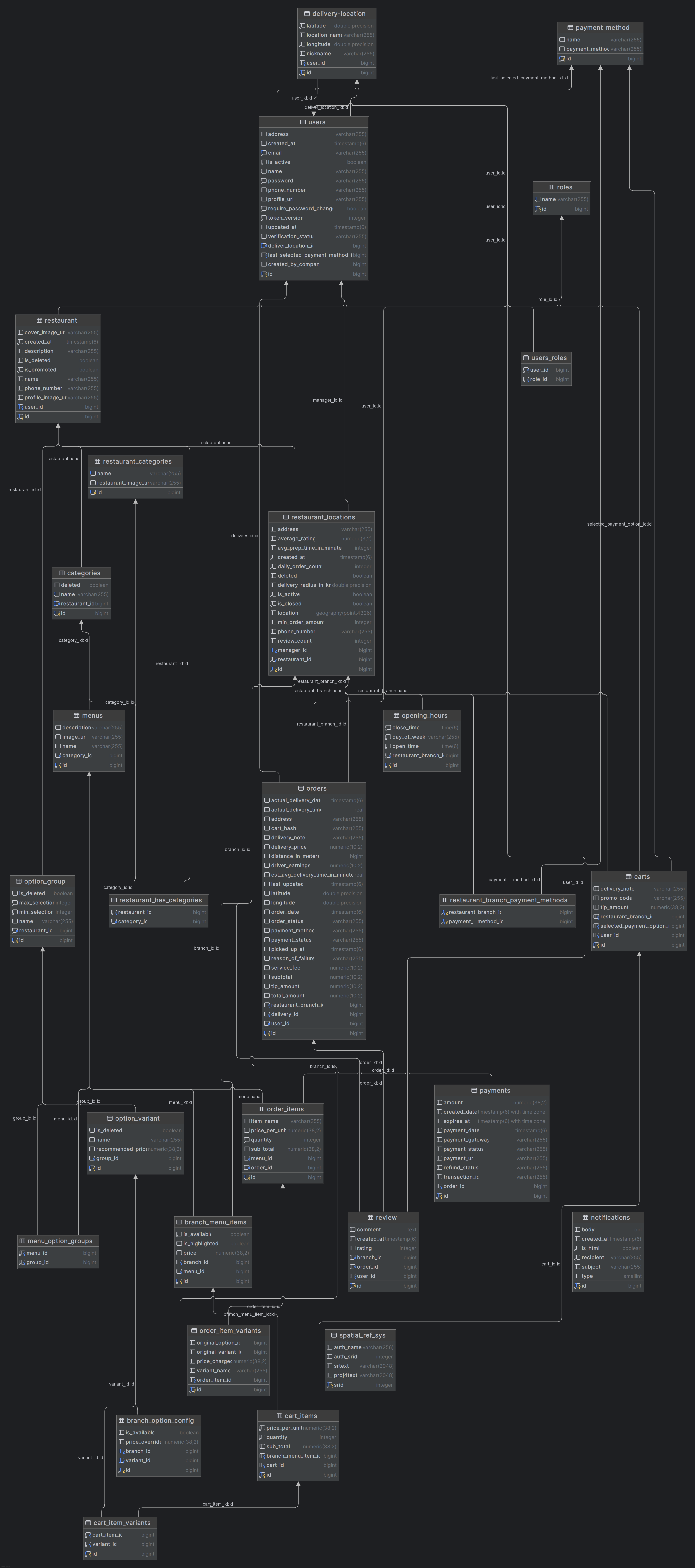

Data Model

This document explains the core database model. The backend uses JPA entities and PostgreSQL. Branch coordinates use PostGIS-compatible geography points.

Users and Roles

User

Table:

users

Important fields:

Field	Meaning
id	Primary key.
name, email, password	Core identity fields. Email is unique. Password is hashed.
phoneNumber, profileUrl, address	Profile information.
isActive	Account activation flag. Inactive users are blocked by AuthFilter.
roles	Many-to-many relation through users_roles.
deliveryLocation	Current active delivery location.
restaurant	One-to-one restaurant owned by a manager.
managedBranch	Branch assigned to a branch manager.
lastSelectedPaymentMethod	Last used payment method for checkout defaults.
requirePasswordChange	Forces created users to change password before using app.
createdByCompany	Tracks who created a company-owned/managed account.
tokenVersion	Used to invalidate old JWTs.

Role

Roles are enum-backed through RoleName:

ADMIN
DELIVERY
MANAGER
CUSTOMER
BRANCH_MANAGER

Restaurant Structure

Restaurant

Table:

restaurant

Represents a brand/company, not a physical store.

Important fields:

• name
• description
• coverImageUrl
• profileImageUrl
• phoneNumber
• isPromoted
• isDeleted
• owner
• categories
• createdAt

RestaurantBranch

Table:

restaurant_locations

Represents a physical branch.

Important fields:

Field	Meaning
address	Human-readable branch address.
location	PostGIS geography(Point,4326).
phoneNumber	Branch contact.
isActive	Whether branch is active in system.
restaurant	Parent restaurant.
openingHours	Weekly opening hours.
availableItems	Branch-specific menu items.
deliveryRadiusInKm	Maximum delivery radius. Current annotation max is 8.
isClosed	Manual/current closed flag.
minOrderAmount	Minimum subtotal for checkout.
avgPrepTimeInMinutes	Preparation time used in delivery estimate.
averageRating, reviewCount	Denormalized review stats.
paymentMethods	Accepted branch payment methods.
manager	Assigned branch manager user.
deleted	Soft-delete flag.
dailyOrderCount	Used for trending logic and reset job.

The RestaurantBranchListener updates Redis GEO key restaurant:locations after branch saves and removes branch IDs after branch deletes.

OpeningHour

Table:

opening_hours

Fields:

• dayOfWeek
• openTime
• closeTime
• branch

Menus, Options, and Branch Customization

The menu model is deliberately two-level so the app can scale to restaurants with many branches.

Menu

Table:

menus

This is a master menu item created by a restaurant manager.

Fields:

• name
• description
• imageUrl
• category
• optionGroups

The master item does not hold branch-specific price or availability.

BranchMenuItem

Table:

branch_menu_items

This joins a master menu item to a branch.

Fields:

Field	Meaning
branch	Physical branch.
menu	Master menu item.
price	Branch-specific price.
isHighlighted	Branch-specific promotion/highlight toggle.
isAvailable	Branch-specific sold-out toggle.

Customers add BranchMenuItem.id to the cart, not Menu.id, because price and availability belong to the branch.

OptionGroup

Represents a group of choices for a menu item.

Example:

Choose sauce

Fields:

• name
• minSelection
• maxSelection
• variants
• isDeleted
• restaurant

OptionVariant

Represents one selectable option inside a group.

Example:

Garlic sauce

Fields:

• name
• recommendedPrice
• group
• isDeleted

BranchOptionConfig

Represents branch-level override for an option variant.

Fields:

• branch
• variant
• priceOverride
• isAvailable

Database business rule:

(branch_id, variant_id) must be unique

That prevents duplicate override rows such as "Blloku branch + Garlic sauce" twice.

Cart Model

Cart

Table:

carts

Fields:

• user
• cartItems
• restaurantBranch
• tipAmount
• deliveryNote
• selectedPaymentMethod
• promoCode TODO

A cart is branch-specific. The current repository lookup is by user and branch.

CartItem

Table:

cart_items

Fields:

• cart
• branchMenuItem
• quantity
• pricePerUnit
• subTotal
• cartItemVariants

pricePerUnit includes the branch item price plus selected variant effective prices at the time the item was added.

CartItemVariant

Stores selected option variants for a cart item.

Order Model

Order

Table:

orders

Important fields:

Field	Meaning
user	Customer.
deliveryPerson	Assigned delivery user.
orderStatus	Current order state.
paymentStatus	Current payment state.
payment	Payment attempts/records.
orderItems	Snapshot of purchased items.
totalAmount, serviceFee, tipAmount, subtotal, deliveryPrice	Monetary values.
distanceInMeters	Route distance at checkout/order time.
estAvgDeliveryTimeInMinutes	Estimated average delivery time.
actualDeliveryTime	Delivery duration after completion.
actualDeliveryDate	Set when delivery starts.
pickedUpAt	Timestamp field exists; current code sets it when marking delivered.
orderDate	Created at persist time.
paymentMethod	CASH_ON_DELIVERY, CARD, or POK.
deliveryNote	Customer note copied from cart.
latitude, longitude, address	Delivery destination snapshot.
branch	Branch fulfilling the order.
lastUpdated	Hibernate update timestamp.
driverEarnings	Delivery driver earnings.
reasonOfFailure	Failure reason, when relevant.
cartHash	Detects duplicate unchanged PokPay checkout attempts.

OrderStatus

Current enum values:

INITIALIZED
CONFIRMED
DELIVERED
ON_THE_WAY
CANCELLED
FAILED
PREPARING
READY_FOR_PICKUP

OrderItem

Snapshot of menu item at order time. It stores quantity, item name, unit price, subtotal, and selected variants.

OrderItemVariant

Snapshot of selected variant data. This is important because variant names/prices may change later, but historical orders should remain stable.

Payment Model

PaymentMethodEntity

Table:

payment_method

Fields:

• id
• name
• paymentMethod

paymentMethod enum:

CASH_ON_DELIVERY
CARD
POK

Payment

Table:

payments

Fields:

• paymentGateway
• order
• amount
• paymentStatus
• transactionId
• paymentDate
• createdDate
• paymentUrl
• expiresAt
• refundStatus

PaymentStatus

Current enum values:

PENDING
REJECTED
COMPLETED
FAILED
REFUNDED
PENDING_PAYMENT
CANCELED
TO_REFUND
EXPIRED
ABANDONED

Delivery Location Model

DeliveryLocation

Table:

delivery-location

Fields:

• latitude
• longitude
• locationName
• nickname
• user

These are saved customer addresses/locations.

Live Driver Location

Live delivery-driver coordinates are not saved in the DeliveryLocation table.

They are written to Redis:

driver_loc:{driverId}

Stored JSON:

{
  "latitude": 41.3275,
  "longitude": 19.8189
}

TTL:

1 hour

This is correct for live tracking: it avoids permanently storing every driver movement. The missing piece is a read/display path for frontend/admin/customer tracking.

Reviews

Reviews belong to:

• customer user,
• branch,
• optionally menu item depending on service flow.

Branch average rating and review count are denormalized onto RestaurantBranch.
